4G WiFi Dashcam with ADAS DMS GPS for Fleet Vehicles
Szczegóły Produktu:
| Miejsce pochodzenia: | Chiny |
| Nazwa handlowa: | oxiang |
| Orzecznictwo: | CE.RoHS,FCC |
| Numer modelu: | OX-MD214-4G |
Zapłata:
| Minimalne zamówienie: | Zbywalny |
|---|---|
| Cena: | Negotiate |
| Szczegóły pakowania: | pudełko na prezent |
| Czas dostawy: | Próbka: około 3-5 dni roboczych po zapłaceniu |
| Zasady płatności: | L/C, T/T, Western Union, MoneyGram |
| Możliwość Supply: | 10000 sztuk/miesiąc |
|
Szczegóły informacji |
|||
| system operacyjny: | Wbudowany LINUX | adas: | FCW, LDW, PCW, pojazd zbyt blisko |
|---|---|---|---|
| FR: | rozpoznawanie twarzy | BSD: | FCW, LDW, PCW, pojazd zbyt blisko |
| Port seryjny: | 2 x rs232 1 x rs485 | ||
| Podkreślić: | 4G WiFi dashcam for fleet vehicles,4G dashcam with ADAS DMS,GPS dashcam with fleet tracking |
||
opis produktu
4CH 4G WiFi SD card Mobile DVR
The detailed features are as follows:
- Industrial design, stable and reliable, easy to install
- Video adopts the international mainstream H.265/H.264 encoding format, and the audio adopts G711a encoding. It can support up to 4 channels of 1080P. high compression ratio , clear image, and Use small disk space .
- Professional vehicle power supply, can adapt to 8 to 36V ultra-wide voltage input, with multiple protection circuits such as overload/short circuit/reverse connection
- Highly reliable aviation plug input and output interface, easy to install and plug, and stronger Vandal-proof performance
- Support 4 channels of video and audio input, frame rate and image quality are adjustable
- Support single SD card Max 512G large capacity recording
- The video content has the power-off protection function, and the video will be automatically restored when power recovery
- Support video loss alarm function
- Independent delay Power shutdown , can support the system to continue running after the vehicle is turned off, the delay time can be set by yourself
- Supporting CMS client platform, providing multiple functions such as playback, analysis, management, etc.
- Support Firmware upgrade via SD card or U disk
- Support 1 x RS232, can be connected to RFID card reader, oil sensor, temperature sensor, etc.
- Support 4G , WiFi and GPS function
Specifications
| Item | Parameters | |
| OS | Embedded Linux | |
| System language | English, other (Can be customized for free) | |
| Video compression format | H.265/H.264 compression format | |
| OSD | Character superposition function, support time and date, vehicle ID and other information image superposition | |
| GUI | graphic interface | System parameters can be set through external display and remote control operation |
| Video and recording system | Video input | 4CH video inputs (aviation plug interface), 1.0Vp-p, 75Ω |
| Video output | 1CH mixed video output (VGA output can be customized), 1.0Vp-p, 75Ω | |
| Preview function | Single-channel or multi-screen splicing preview, support manual/event trigger full-screen display function | |
| Video resolution | 4CH machine supports 1080P/720P/D1/CIF optional, and the maximum can support 4 channels 1080P | |
| Record mode | Default automatic recording, support ACC recording, manual recording, alarm recording, etc. | |
| Audio | Audio input | 4CH,aviation plug |
| Audio output | 1CH,aviation plug | |
| Format | G711a compression format | |
| Alarm input | 4CH alarm inputs, with alarm linkage function | |
| Alarm Output | 1CH output | |
| RS232 | Support 1 x RS232 | |
| USB | Support 1 x USB interface | |
| Positioning | Support built-in GPS/BD(GPS/GLONASS) module | |
| sensor | Support built-in acceleration sensor | |
| Network | 4G | Support built-in 4G function |
| WiFi | Support built-in WiFi function | |
| Video storage | SD Card | Maximum support 1x512G SD card, loop recording |
| File format | H.265/H.264 | |
| Video playback | Video search | Search for recording video files by recording time, recording mode, etc. |
| Playback | Support multi-channel synchronous playback, support fast forward and fast reverse, support 2, 4, 8, 16 times speed optional | |
| upgrade | Firmware upgrade | Support SD Card Upgrade, Support Network upgrade |
| Power | Power management | Adaptive wide power Voltage input, with protection functions such as overload, overvoltage, undervoltage, short circuit, and reverse connection;Support timing power on/off , delayed power on/off function |
| Input voltage | DC:8 ~ 36V | |
| Consumption | Normal work maximum:5W,standby:0.5W | |
| working environment | temperature | -20℃ to +70℃ |
| humidity | 20% to 80% | |
| Safety management | Password access | Two-level management of user password and administrator password |

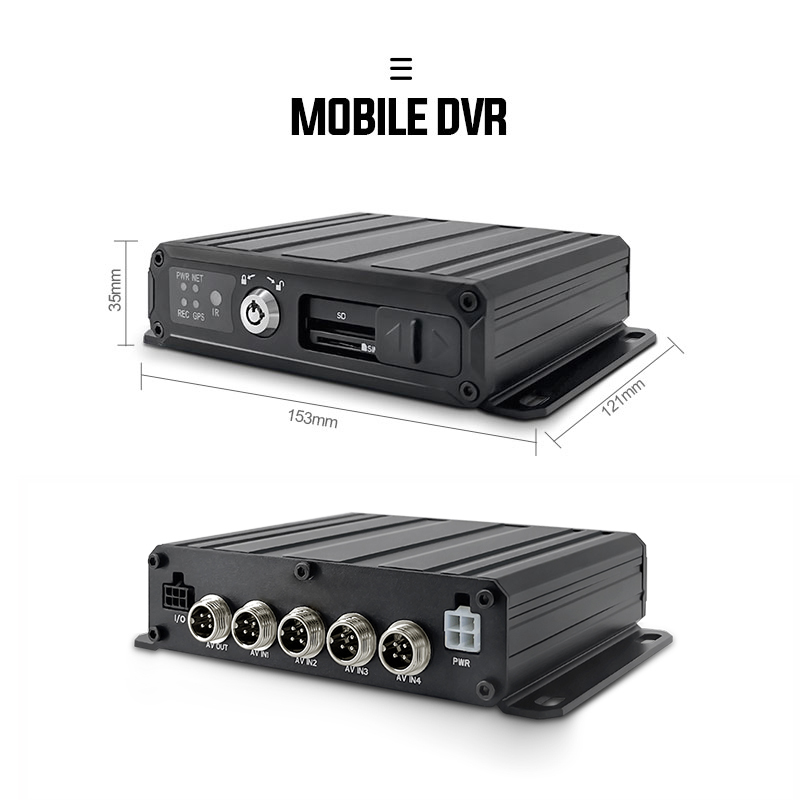

| Other | Size: | 153(W) x35(H) x121(L) mm |
